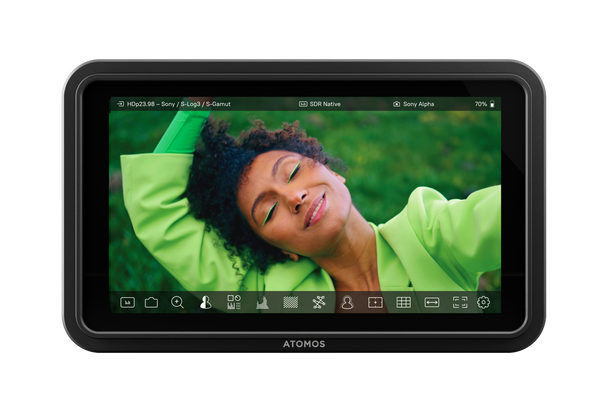

Atomos Shinobi II 5.2" HDMI HDR Monitor

Atomos Shinobi II has been redesigned with a new, slimline case and a 50% brighter screen, yet still manages to pack in all of Atomos’ renowned screen processing technology and professional monitoring tools, plus exciting new hardware features like camera control.
Atomos has been developing amazing monitoring and recording technology for over a decade. Shinobi II has been redesigned with a new, slimline case and a 50% brighter screen, yet still manages to pack in all of Atomos’ renowned screen processing technology and professional monitoring tools, plus exciting new hardware features like camera control. Take control of Canon, Panasonic or Sony cameras via USB-C, plus Z CAM cameras via optional USB-C to Serial cable. More vendors will be supported with future firmware releases. Due to its low power consumption and efficient hardware, Shinobi II will run all day on a single battery charge. Expose your shots accurately using our advanced exposure tools like false color, zebras, histograms, waveforms and vectorscopes. A multi-tool Analysis View gives you all the essential info at a glance. There’s even a selfie Mirror Mode for vloggers. Shinobi II is the perfect accessory to improve any photo or video production.
Features
Much slimmer body and low-profile design – weighs just 210gms.
50% brighter – 1500nit peak brightness, 5-inch, high-resolution touchscreen.
Camera control via USB-C for Canon, Panasonic and Sony cameras, plus Z CAM cameras via optional USB-C to Serial cable.
Use the Camera Status indicators to check the camera’s internal record settings, battery status & remaining record time.
New AtomOS 11 user interface has a more modern look, more responsive operation and easy access to all the most-used monitoring tools.
Powered by NP-F style batteries, or via USB-C PD (10W input).
Charge/power the camera via USB-C PD (13W output), all while using the Shinobi II’s camera control features.
Unique Analysis Mode can deploy the waveform, histogram & vectorscope tools simultaneously.
Frame Guides and 9 Grid help get perfect framing and composition.
Low power consumption – Shinobi II can run all day off a single battery charge.
Camera control for an extensive list of cameras
Harnesses the versatility of USB-C to control most recent mirrorless or DSLR cameras from Canon, Panasonic and Sony, as well as the popular compact cinema cameras from Z CAM's E2 line. There are plans to support cameras from Fujifilm, Nikon, OM System and SIGMA with future firmware updates.
Check camera status at a glance
Use the Camera Status indicator to keep an eye on the camera’s internal record settings, battery status and remaining record time. The red edge display shows when the camera is recording internally, regardless of whether it's triggered by the camera or from the Shinobi II.

Physcial
Dimensions (W x H x D mm)
151mm x 91.5mm x 20.8mm (28.5mm with locking cable adaptor attached)
Weight
210g / 7.4 oz
Mount points
Bottom: 1 x 1/4-inch 20 with anti-rotational points
Environmental
Ambient operating temperature
Up to 40 degrees Celsius
Construction & Control
Body
ABS polycarbonate
Cooling
Passive heat sink
Multi-function button
Power / lock screen
Power
Input voltage
6.2V to 16.8V
Operating power
<10W
Compatible batteries
NPF L series
Built in battery
No
Continuous power
Via NPF battery and USB-C PD Power
DC in connector
Via Battery Eliminator (optional)
DTAP
Via Battery Eliminator and optional D-Tap to DC barrel cable
USB PD IN
< 10W
USB PD OUT
> 13W
Display
Touchscreen
SuperAtom IPS panel (capacitive touch)
Size 5.2-inch
Resolution
1920 x 1080
178 + H & V
PPI
427
Bit depth
10-bit (8+2 FRC)
Backlight Type
Edge lit
Aspect ratio
16/9
Color Gamut
Rec.709
Calibration support
Atomos Calibrator on PC/Mac with Calibrite ColorChecker Display Pro & ColorChecker Display Plus + Simple on-device calibration (connect Calibrite probe directly to Shinobi II via USB-C)
Color Pipeline
Gamma
Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3,
Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320
/ LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 /
LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG,
JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm
F-Log, PQ (HDR10), HLG, Nikon N-Log
Gamut
BT.2020, DCI P3, DCI-P3 D65, Rec709, Sony S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709
Canon Cinema / BT.2020 / DCI P3 / DCI P3plus / Rec.709
Panasonic V Gamut / Rec.709
Arri Alexa Wide Gamut / Rec.709
JVC LS300 / Rec.709
Red DragonColor / DragonColor2 / RedColor2 /
RedColor3 / RedColor4 / RedWideGamut
3D LUT Display
.Cube Format (17 & 33 points supported)
3DLUT 50/50
Yes
Monitoring Modes
SDR Native, HDR HLG, HDR PQ, 709 LUT, User LUT
Video Input
HDMI
1 x HDMI (1.4)
Bit Depth
8/10-bit video
Video Chroma Subsampling
4:2:2
Audio In/Out
HDMI
2 channel, 24-bit, input dependent
Analogue Audio in
3.5mm headphone jack, 2 channel
Headphone out
3.5mm headphone jack, 2 channel
Timecode / Sync / Control
Embedded
HDMI (display only)
Resolution & Frame Rates (Monitor)
4K DCI
23.98/24/25/29.97/30
4K UHD
23.98/24/25/29.97/30
FHD 1920 x 1080 Progressive
23.98/24/25/29.97/30/50/59.94/60
FHD 1920 x 1080 Interlaced
50i/60i
1280 x 720p
50/59.94/60p
Supported media
SD
Update firmware & upload LUTs
File System
FAT32, NTFS
On screen tools
MultiScope Analysis View
Image, WFM, vector, histogram
Waveform
3 sizes – adjustable opacity & brightness
Histogram
3 sizes – adjustable opacity & brightness
RGB parade
3 sizes – adjustable opacity & brightness
Vector scope
1 size – adjustable opacity & brightness
1 x Zoom
Tap to zoom
2 x Zoom
Tap to zoom
4 x Zoom
Tap to zoom
Focus peaking
4 modes (color, black & white, outline, edge sharpening) with adjustable outline color & peaking intensity
Atomos False color
Yes, with Scale
Zebra
Adjustable threshold (50% to 105%)
Isolate color channel
Blue Only
Cine Frame Guides
Presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9
Social Frame guides
Presets for 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2
Safe areas
SMPTE safe title area – 93% & 90%
Grid markers
9 grid
Anamorphic desqueeze
2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x
Display Flip
Horizontal & vertical
Remote Control
Serial 2.5mm Jack
Calibration via optional USB to serial cable
External Device Control
Serial 2.5mm Jack
Camera control for Z CAM cameras via optional USB to Serial Cable
USB
Recorder Indicator
